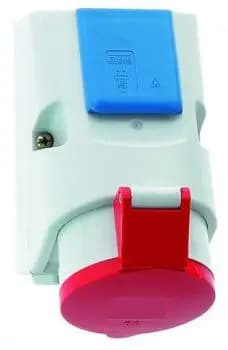

Bals 1010 16A 5p 400V 6h IP44 GT Combination wall-mounted socket (1010)

€47.82

Daudzums

Description

• Product: Kombinētā sienas kontaktligzda 16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
• Frequency: 50/60Hz
• Technical identification colour: red RAL 3000
• Enclosure size: 126x83 mm (H x W)
• Contact carrier / contacts: kontaktnešējs no poliamīda, kontakti no misiņa
• Maximum conductor cross-section: 4.0 mm²
• Enclosure material: plastic
• Connection technology: ar skrūvju spailēm
• Cable entry: 1xM25 top, 2xM25 bottom
• Device colour: lower housing grey RAL 7035, upper housing grey RAL 7035, collar grey RAL 7035
• Device height: 154 mm
• Device width: 83 mm
• Device depth: 130 mm
• Other technical features:
• Cable entry once open at the top and twice sealed at the bottom
• With integrated protective-contact socket 16A 250V AC (German system)
• Four mounting knock-out holes in the housing base
• With terminals 3x6 mm² and ready-wired
